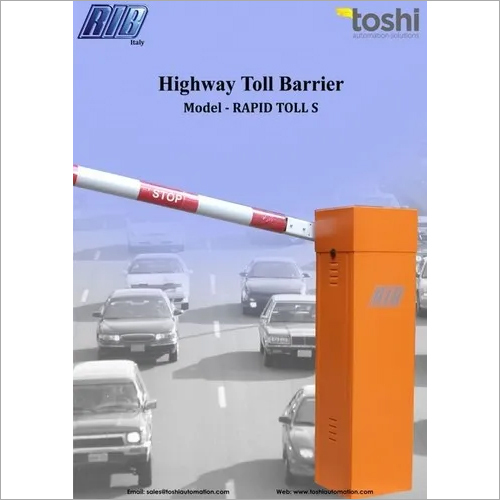

Auto Boom Toll Barrier

Set Rib Toll Barrier 4 Meter (Rapid S)

Technical Specifications :

• Max. Boom Length : 3 to 4 meter in 2mm Thick round aluminium bar with foam

• Boom Weight (Kg) : 2.65kg for 4mtr. long
• Max. Torque (NM) : 72
• Opening Time (Sec) : 2 to 3 sec.
• Power Supply (V) : 230
• Motor Capacity (W) : 240
• Power absorbed (A) : 1
• Weight of Operator (Kg) : 62
• Protection Grade (IP) : 54
• Daily Cycles Suggested (n) : 1200
• Service (%) : 100
• Operating Temp (C) : -10 to +55
• Colour : RAL 2000 for Barrier

• RS-485 : Inbuilt
• MTBF (mean time between failures) : 0.5 Million
• Life Cycles: 5 Million
• Certification: CE, Made in Italy
